Prosthetics & Instrumentation · BT SCREW
BT SCREW Surgical Kit: Comprehensive Fixation for Advanced Surgery
A complete, highly versatile system designed for the precise fixation of custom IUXTA-3D implants, bone grafts, and regenerative barriers.

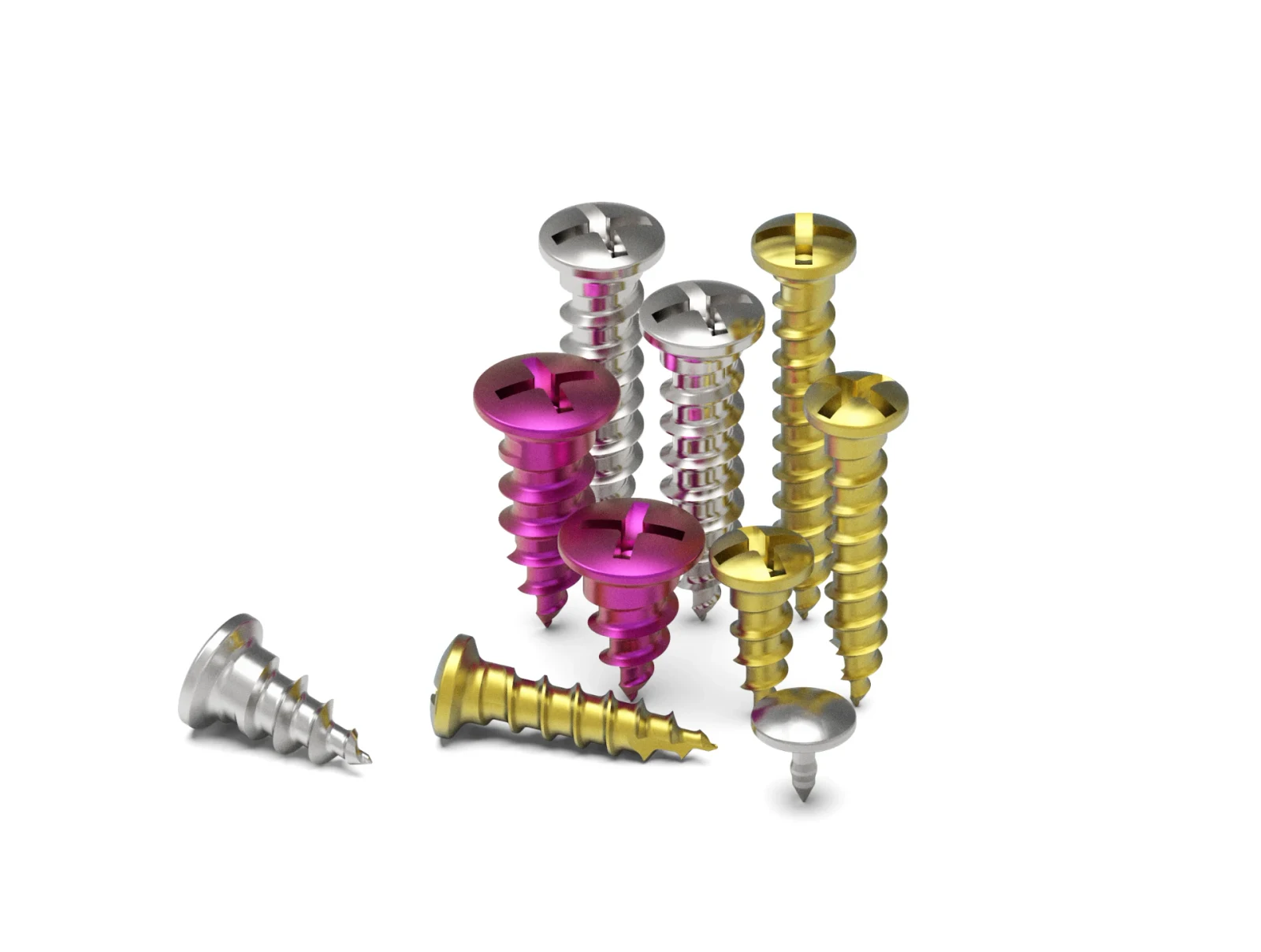

The Cortical Screw Portfolio
To cover almost all surgical requirements, the kit contains a comprehensive set of fixation screws and pins.
- For IUXTA-3D: We highly recommend utilising the 2.0 mm or 2.3 mm diameter screws.

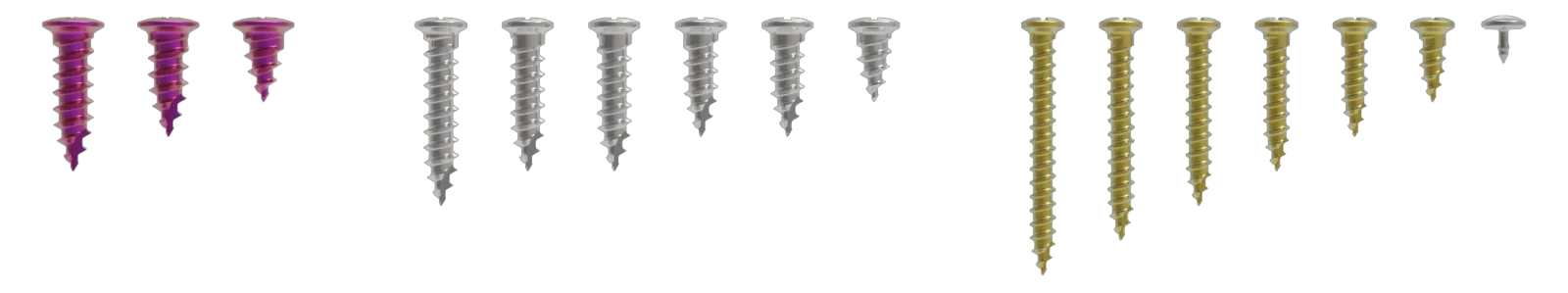

- Available Screw Diameters: 1.2 mm, 1.5 mm, 2.0 mm, and 2.3 mm.
- Available Screw Lengths: Ranging from 4 mm up to 14 mm.
- Fixation Pins: 0.65 mm diameter, 2 mm length.
- Surface Options: Choose between a standard smooth surface or a surface treated with double acid etching (DAE).

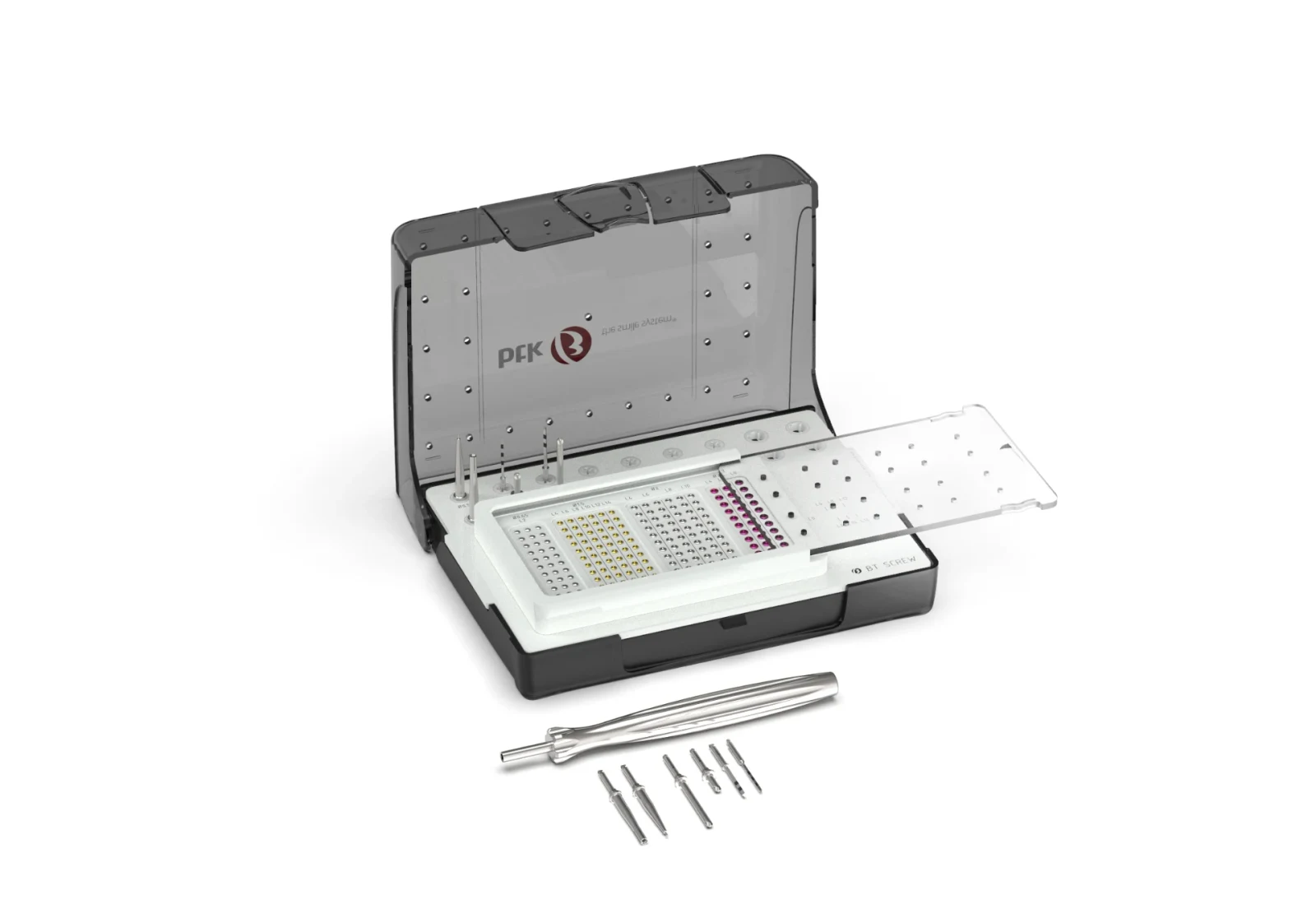

Kit Instruments & Components (Ref. 667NA001)
- Drilling & Preparation: Includes specialised Lance Cutters (High Speed and High Length, 1.0 mm to 1.5 mm) and a 0.5 mm pin drilling instrument.
- Insertion Tools: A dedicated nail inserter, handpiece screwdrivers, and a 140 mm manual key.
- Torque Control: Includes standard screwdrivers (HEX 1.20 and HEX 0.90) and a JD Dynamometric Reversible Ratchet (90 Ncm).
Need to restock your surgical inventory?
Whether you need the Complete BT SCREW Kit, compact screwdriver racks, or specific screw refill packs (available in packs of 5 or 10), we have you covered.
