BTK IC+ Implants: Unmatched Stability. Ultimate Versatility.
Premium "100% Made in Italy" craftsmanship meets cutting-edge biological design. The IC+ implant delivers predictable, long-lasting results for every bone density.
The Go-To Implant for Immediate Loading

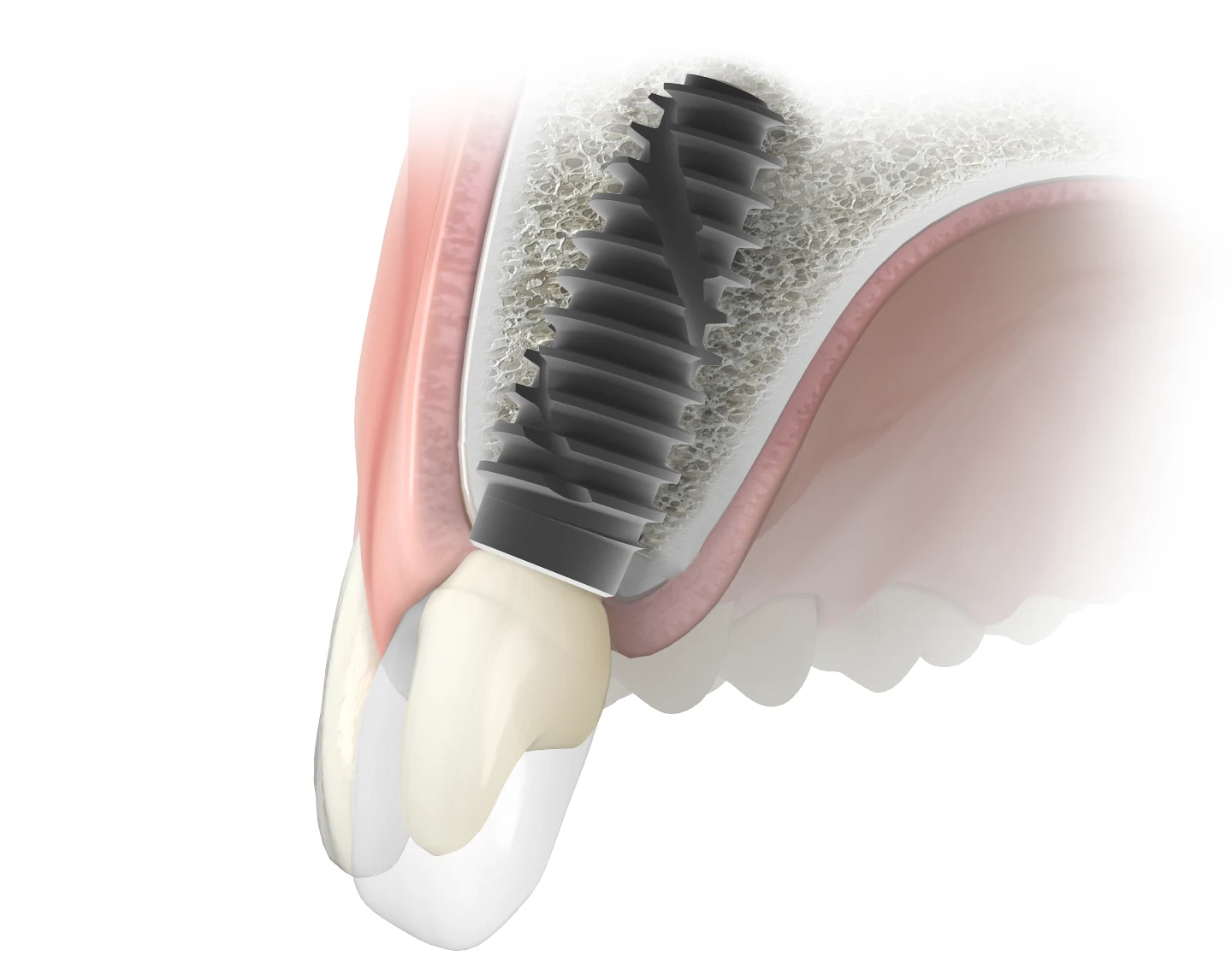

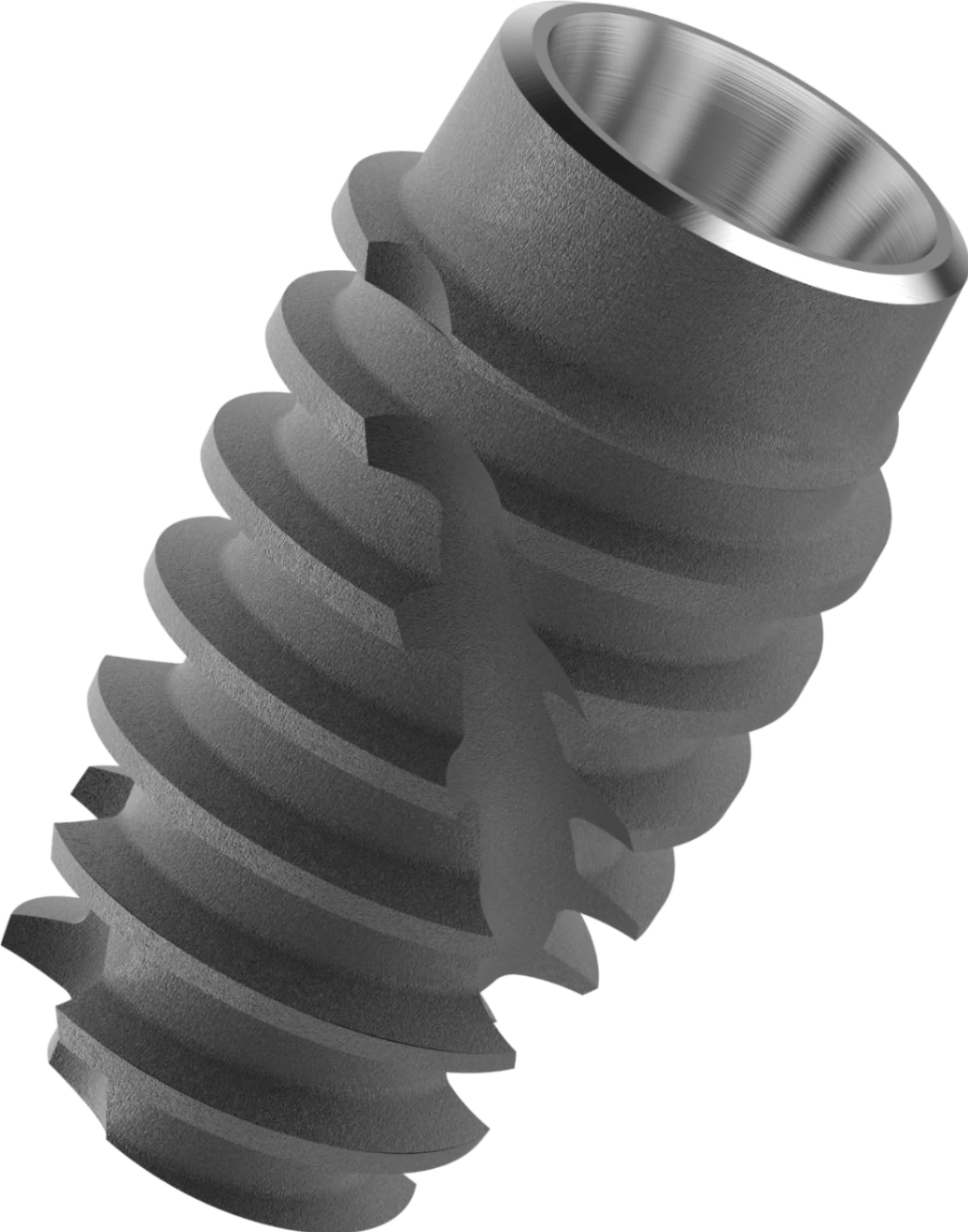

The IC+ is designed for endosseous implant treatment in both the upper and lower jaw, suitable for fully or partially edentulous patients. Engineered with a unique variable thread profile and a conical core, the IC+ achieves excellent primary stability and high Bone-to-Implant-Contact (BIC) values. This makes it the ideal choice for immediate loading procedures, including All-on-4 and All-on-6 protocols.
Key Clinical Benefits
- Seamless Compatibility: The IC+ features an internal dodecagonal regular (LR) connection that is perfectly compatible with standard internal hexagon (IR) prosthetic components.
- Superior Osseointegration: Manufactured from commercially pure, cold-worked Titanium Grade 4 with a full-length Dual Acid Etched (DAE) surface to accelerate healing and new bone formation.
- Preserves Cortical Bone: A back-tapered collar reduces load transfer in the cortical area during insertion, preventing bone compression and maintaining tissue levels for predictable aesthetic results.

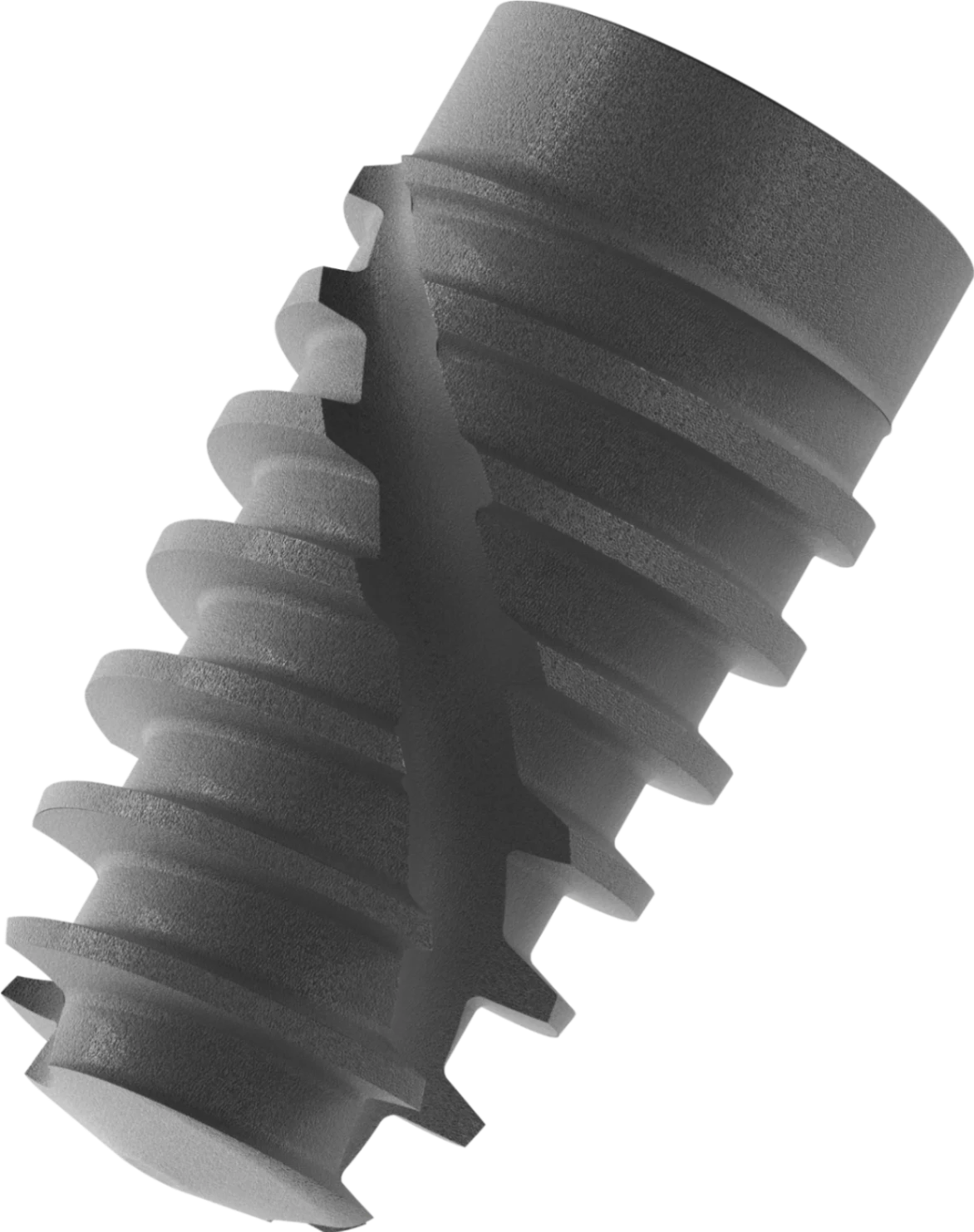

- Self-Tapping Precision: Features a narrow, active apex with cutting edges and wide longitudinal flutes up to the implant core, eliminating the need for tapping while ensuring smooth insertion even in underprepared sites.
- Flexible Positioning: The morphology allows for sub-crestal positioning (ideal for post-extraction sites or irregular crests) or crestal positioning for thick biotypes.

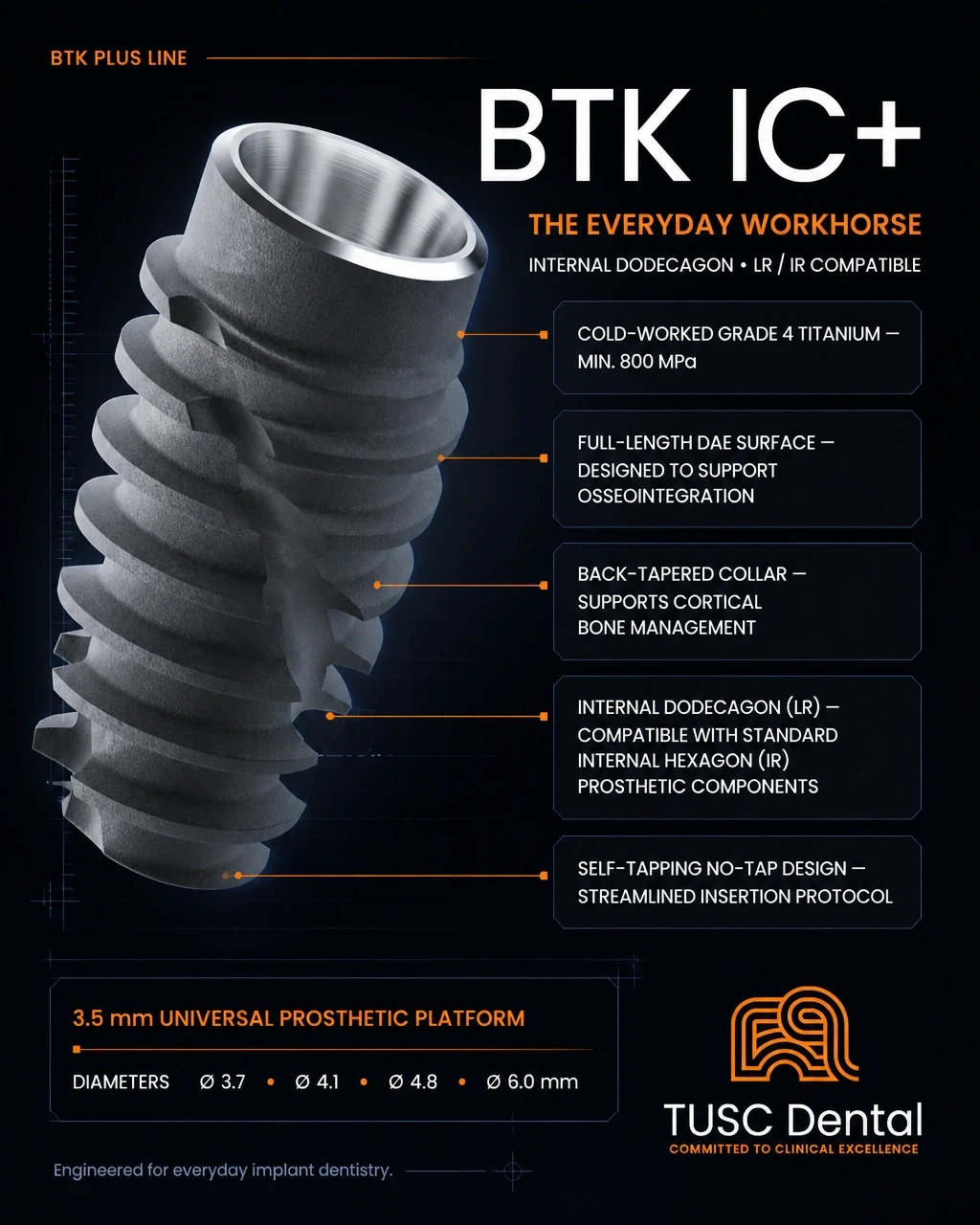

Technical Specifications
- Material:
- Commercially Pure Ultra Fine Grain (UFG) Titanium Cold-Worked Grade 4 with a minimum 800Mpa
- Surface Treatment:
- DAE (Dual Acid-Etched)
- Connection Type:

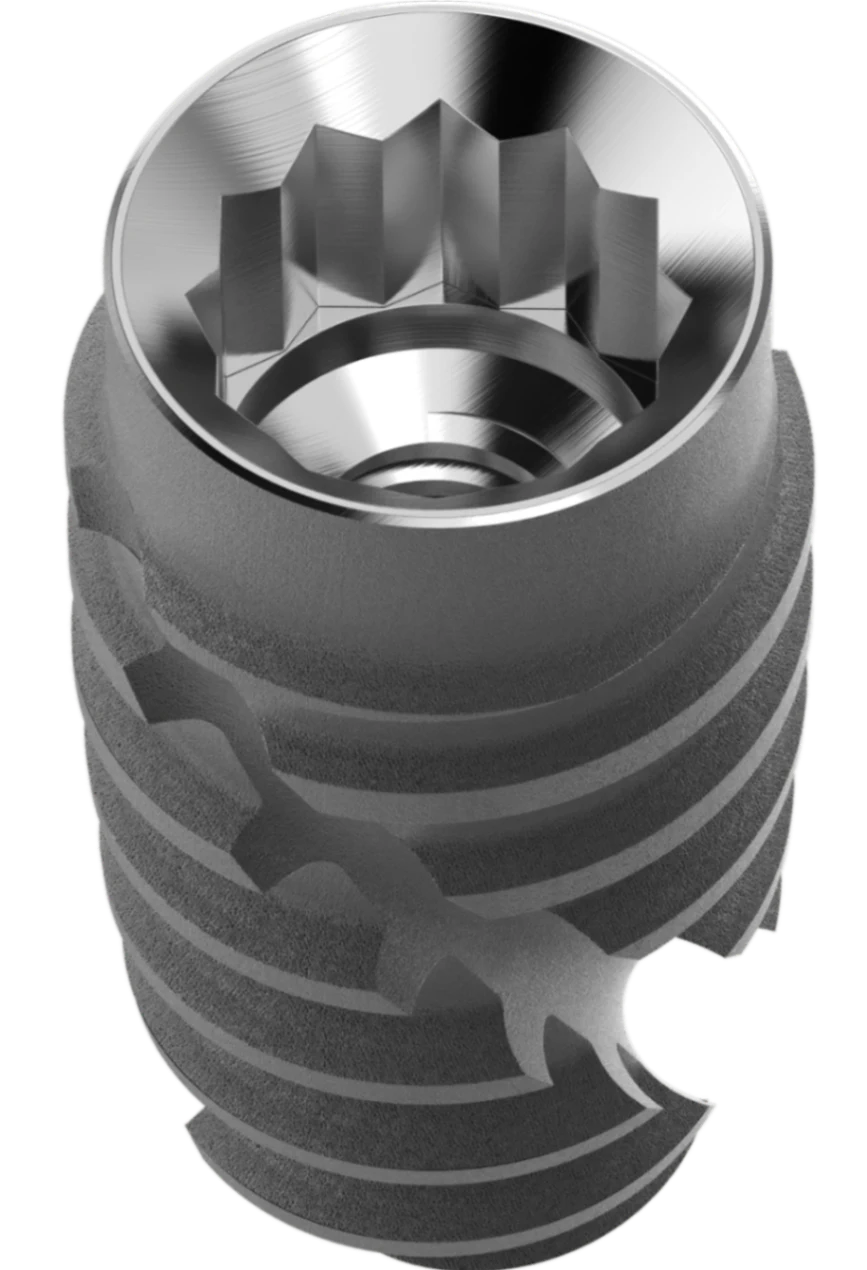

- Internal Dodecagon (LR) / Compatible with Internal Hexagon (IR)
- Available Diameters:
- 3.7 mm, 4.1 mm, 4.8 mm, 6.0 mm
- Available Lengths:
- 6 mm to 16 mm (varies by diameter)
- Prosthetic Platform:
- 3.5 mm
The IC+ "No-Tap" Surgical Protocol
Thanks to its highly effective self-tapping design, the IC+ does not require tapping. The surgical procedure utilises an under-preparation protocol compared to standard lines to guarantee primary stability.
- Surgical Kit: The IC+ utilises the same compact, versatile surgical kit as the BT SAFE, IS KONE, and BT NANO implant systems.
- Recommended Insertion Speed: 15-25 rpm.
- Maximum Torque (Implants 3.7 mm or smaller): 35-45 Ncm.
- Maximum Torque (Implants larger than 3.7 mm): 45-65 Ncm.
Additional BTK PLUS Profiles (Available Upon Request)
While the IC+ is our flagship stocked implant, TUSC Dental can fully supply the entire BTK PLUS line:
- IS+ (Morse-Taper): Features an 11° conical hexa-dodecagonal connection. Offers exceptional mechanical resistance and is fully compatible with KR prosthetic connections.
- EC+ (External Hex): Features the classic external hexagon (ER/EW) connection. (Note: IS+ and EC+ are supplied on a per-order basis).
